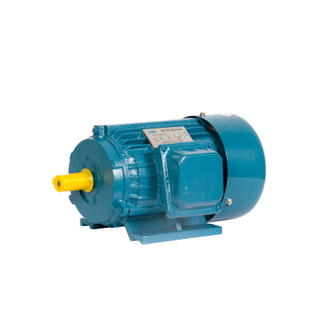

三相异步电动机/交流电机

港口:中国厦门
生产能力:每月3200套
付款方式:信用证,电汇
应用:工业
工作速度:恒定速度
定子数量:三相
种类:Y,Y2系列三相
转子结构:鼠笼式
外壳保护:密闭型
状态:

产品介绍

Y系列电动机是全封闭自扇冷鼠笼式三相异步电动机,是最新设计的基础系列。符合IEC标准的有关规定。具有效率高,节能,起动转矩大,噪音小,振动小,可靠性高,使用方便,维护方便等特点。一般情况广泛用于易燃,易爆或腐蚀性气体,对金属切割机,泵,风机,搅拌机,农业机械,运输机械和食品机械等机械设备没有特殊要求。


运行条件

环境温度:-15ºC<θ<40ºC

海拔:不超过1000m

额定电压:380V或220V-760V之间的任何电压

额定频率:50Hz,60Hz

防护等级:IP44,IP54,IP55

绝缘等级:B,F

冷却方式:IC0141

职责:S1(连续)

连接:星形连接,最高3kW,

            4kW及以上的三角连接。


技术数据

模型额定输出满载


KWHP速度
(r.p.m)
当前
(A)
效果
(%)
功率因数(cosθ)Ist/InTst/Tn
380V 50Hz同步速度3000r / min(2极)
Y-801-20.75128301.81750.846.52.22.3
Y-802-21.11.528302.52770.867.02.22.3
Y-90S-21.5228403.44780.857.02.22.3
Y-90L-22.2328404.8380.50.867.02.22.3
Y-100L-23428706.39820.877.02.22.3
Y-112M-245.528908.1785.50.887.02.22.3
Y-132S1-25.57.5290011.185.50.887.02.02.3
Y-132S2-27.510290015.086.20.887.02.02.3
Y-160M1-21115293021.887.20.887.02.02.3
Y-160M2-21520293029.488.20.897.02.02.3
Y-160L-218.525293035.5890.897.02.02.2
Y-180M-22230294042.2890.897.02.02.2
Y-200L1-23040295056.9900.897.02.02.2
Y-200L2-23750295069.890.50.897.02.02.2
Y-225M-24560297083.991.50.897.02.02.2
Y-250M-25575297010391.50.897.02.02.2
Y-280S-2751002970139920.897.02.02.2
Y-280M-290125297016692.50.897.02.02.2
Y-315S-2110150298020392.50.896.81.82.2
Y-315M-21321802980242930.896.81.82.2
Y-315L1-2160220298029293.50.896.81.82.2
Y-315L2-2200270298036593.50.896.81.82.2
380V 50Hz同步速度1500r / min(4极)
Y-801-40.550.7513901.51730.766.02.42.3
Y-802-40.75113902.0174.50.766.02.32.3
Y-90S-41.11.514002.75780.786.52.32.3
Y-90L-41.5214003.65790.796.52.32.3
Y-100L1-42.2314305.03810.827.02.22.3
Y-100L2-43414306.8282.50.817.02.22.3
Y-112M-445.514408.7784.50.827.02.22.3
Y-132S-45.57.5144011.685.50.847.02.22.3
Y-132M-47.510144015.4870.857.02.22.3
Y-160M-42215146022.6880.847.02.22.3
Y-160L-41520146030.388.50.857.02.22.3
Y-180M-418.525147035.9910.867.02.02.2
Y-180L-42230147042.591.50.867.02.02.2
Y-200L-43040147056.892.20.877.02.02.2
Y-225S-43750148070.491.80.877.01.92.2
Y-225M-44560148084.292.30.887.01.92.2
Y-250M-45575148010392.60.887.02.02.2
Y-280S-475100148014092.70.887.01.92.2
Y-280M-490125148016493.50.896.81.92.2
Y-315S-4110150148020193.50.896.81.92.2
Y-315M-41321801490240940.896.81.92.2
Y-315L1-4160220149028994.50.896.81.92.2
Y-315L2-4200270149036194.50.896.81.92.2
380V 50Hz同步速度1000r / min(6极)
Y-90S-60.7519102.2572.50.705.52.02.2
Y-90l-61.11.59103.1673.50.725.52.02.2
Y-100L-61.529403.9777.50.746.02.02.2
Y-112M-62.239405.1680.50.746.02.02.2
Y-132S-63.049607.23830.766.52.02.2
Y-132M1-64.05.59609.40840.776.52.02.2
Y-132M2-65.57.596012.685.30.786.52.02.2
Y-160M-67.51097017.0860.786.52.02.0
Y-160L-611.01597024.6870.786.52.02.0
Y-180L-615.02097031.489.50.816.51.82.0
Y-200L1-618.52597037.789.80.836.51.82.0
Y-200L2-622.03097044.690.20.836.51.82.0
Y-225M-630.04098059.590.20.856.51.72.0
Y-250M-637.05098072.090.80.866.51.82.0
Y-280S-645.06098085.4920.876.51.82.0
Y-280M-65575980104920.876.51.82.0
Y-315S-67510099014192.80.876.51.82.0
Y-315M-69012599016993.20.876.51.82.0
Y-315L-611015099020693.50.876.51.82.0
Y-315L2-613218099024693.80.876.51.82.0
380V 50Hz同步速度750r / min(8极)
Y-132S-82.237105.8580.50.715.52.02.0
Y-132M-83.047107.72820.725.52.02.0
Y-160M1-84.05.57209.91840.736.02.02.0
Y-160M2-85.57.572013.3850.746.02.02.0
Y-160L-87.51072017.7860.755.52.02.0
Y-180L-811.01573024.887.50.776.02.02.0
Y-200L-815.02073034.1880.766.02.02.0
Y-225S-818.52573041.389.50.766.01.72.0
Y-225M-822.03073047.6900.786.01.82.0
Y-250M-830.04074063.090.50.806.01.82.0
Y-280S-837.05074078.2910.796.01.82.0
Y-280M-845.06074093.291.70.806.01.82.0
Y-315S-855.075740114920.806.01.62.0
Y-315M-875.010074015292.50.816.51.62.0
Y-315L1-890.0125740179930.826.51.62.0
Y-315L2-8110.015074021893.30.826.31.62.0
380V 50Hz同步速度600r / min(10极)
Y315S-10456059010191.50.746.01.42.0
Y-315M-105575590123920.746.01.42.0
Y-315L2-107510059016492.50.756.01.42.0
